Product Details:
|
|
Construction and Dimension |
|||||
|
Item |
RG59 |
RG58 |
RG6 |
RG7 |
RG11 |
|
Material of inner conductor |
Cu |
Cu |
Cu |
Cu |
Cu |
|
Diameter of inner conductor(mm) |
0.81±0.02 |
19*0.20±0.01 |
1.00±0.02 |
1.29±0.02 |
1.63±0.02 |
|
Material of dielectric |
Foam PE |
PE |
Foam PE |
Foam PE |
Foam PE |
|
Diameter of Dielectric(mm) |
3.66±0.15 |
2.95 |
4.57±0.01 |
5.72 |
7.11 |
|
Material of Shield |
ALfoil+Al brading |
BC/TC braiding |
ALfoil+Al brading |
ALfoil+Al brading |
ALfoil+Al brading |
|
Coverage |
40%--95% |
95% |
40%--95% |
40%--95% |
40%--95% |
|
Diameter of 1st outer conductor |
3.9 |
- |
4.9 |
5.9 |
7.52 |
|
(mm) |
|||||
|
Diameter of 2nd outer conductor |
4.12 |
-- |
5 |
- |
7.8 |
|
Material of Jacket |
PVCPE |
PVCPE |
PVCPE |
PVCPE |
PVCPE |
|
Diameter of Jacket |
6.3 |
4.95 |
6.9 |
8.1 |
10.16 |

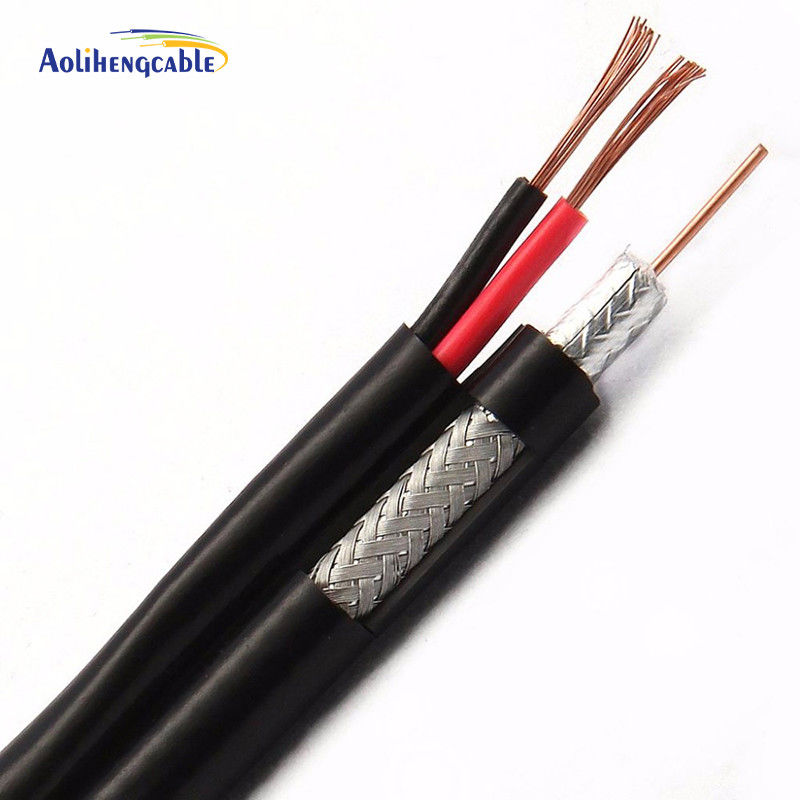

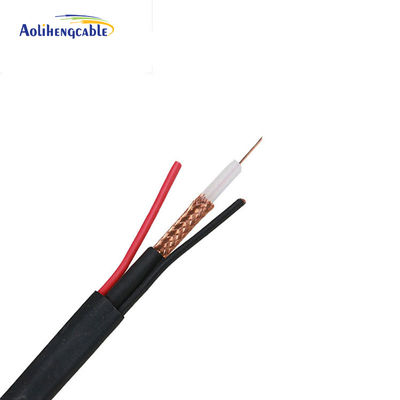

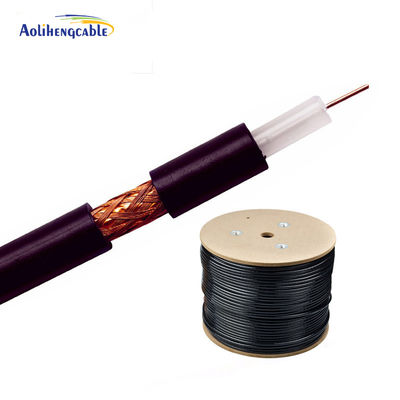

Product name: coaxial wire
Conductor material : Copper-clad aluminum, copper-clad steel, copper
Application: CCTV and Aerospace Industries
What is coaxial cable?
Coaxial Cable refers to a Cable with two concentric conductors, and the conductor and the shielding layer share the same axis. The most common type of coaxial cable consists of a copper conductor isolated by an insulating material. Outside the inner layer of the insulating material is another ring conductor and its insulator. Then the whole cable is enclosed by a sheath of PVC or Teflon material.
