Product Details:
|

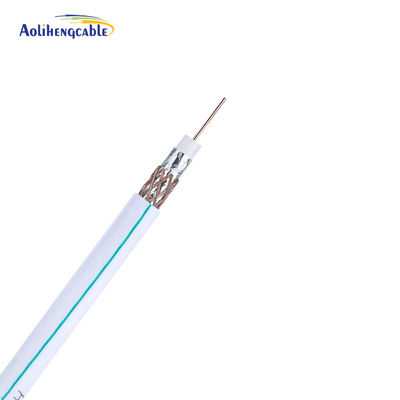

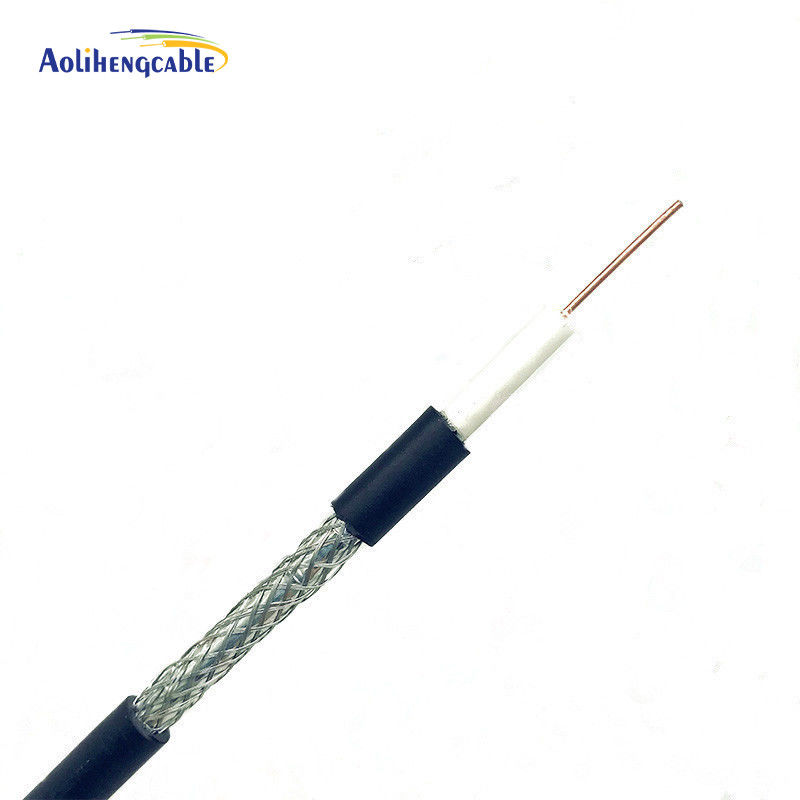

Product name: RG 6 coaxial cable
Jacket Material: PE PVC
Conductor material: BC/ CCS
Application: CCTV/communication
OEM/ODM: YES
|
RG 6 coaxial cable Basic construction |
STANDARD SHIELD |
TRI-SHIELD |
QUAD-SHIELD |
|
|
MATERIAL |
BC/CCS |
BC/CCS |
BC/CCS |
|
|
CONDUCTOR |
Nom.Dia. |
18AWG |
18AWG |
18AWG |
|
MATERIAL |
Foam PE |
Foam PE |
Foam PE |
|
|
DIELECTRIC |
Nom.Dia. |
4.57mm |
4.57mm |
4.57mm |
|
MATERIAL |
Al Foil+Al Braiding |
Al Foil+Al Braiding+Al Foil |
(Al Foil+Al Braiding)*2 |
|
|
SHIELD |
COVERAGE |
40%-95% |
40%-95% |
40%-60% |
|
MATERIAL |
PVC/PE |
PVC/PE |
PVC/PE |
|
|
Nom.Thick. |
0.80mm |
0.80mm |
0.86mm |
|
|
JACKET |
Nom.Dia. |
6.91mm |
7.06mm |
7.62mm |
|
MATERIAL |
Galvanized steel wire |
|||
|
MESSENGER |
Nom.Dia. |
1.30mm |
1.30mm |
1.30mm |
